Have you ever wondered how to convert the mass of a fly to the length of a leader? I have been on a mission to solve this problem mathematically, and this is what I have uncovered.

The information provided in the articles: Advanced Leader Design https://madanglerhub.com/2026/01/30/advanced-leader-design/, Extending and Repairing the Tippet on a Leader https://madanglerhub.com/2026/03/04/extending-and-repairing-the-tippet-on-a-leader-a-mathematical-approach/, Finding the Perfect Turnover a Ratio https://madanglerhub.com/2026/03/04/finding-the-perfect-turnover-using-a-ratio/, and The Perfect Fly Cast: A Physics Model https://madanglerhub.com/2026/03/01/the-perfect-fly-casta-physics-model/, are how I have come to derive a method for turning the weight of a fly into lengths, by section, of a standard leader. Hence, this method is used for fly-to-leader combinations, a method where the fly is tied, then, after the official weight of the fly is found, the leader is tied.

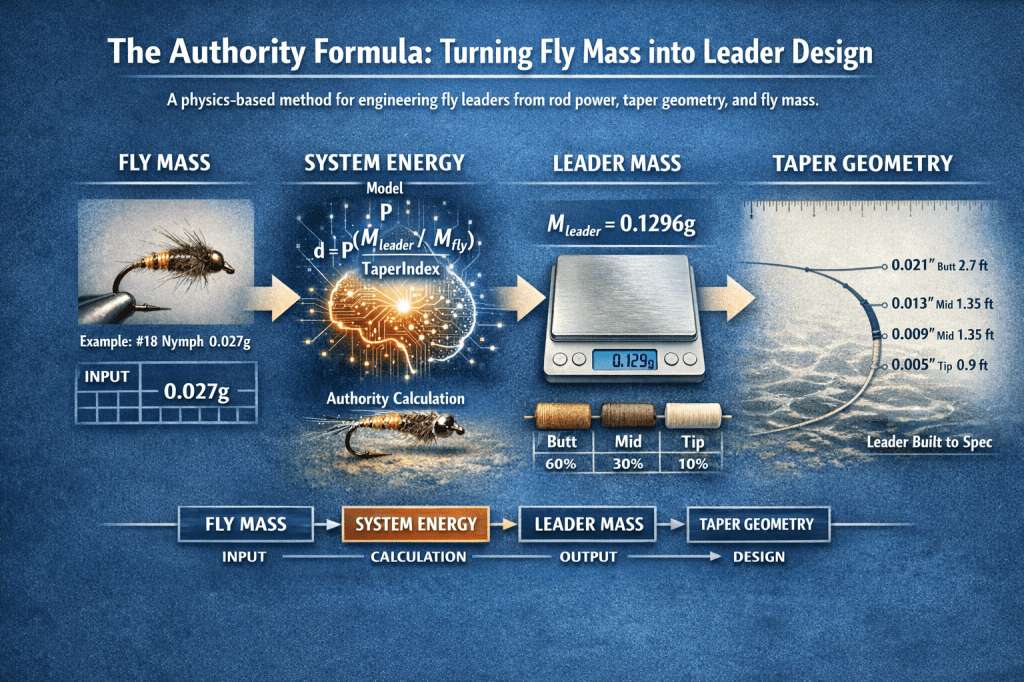

I come from a software engineering background and I have designed a lot of this to be like a software pipeline. Most anglers think: fly size → tippet size → guess leader. I am doing: fly mass → system energy → leader mass → taper geometry. The mechanics and functions presented here allow us to govern our leader system rather than playing the guessing game.

We start with the formulas:

P = W / W_ref

TaperIndex = Sum(L_i * d_i^4) / Sum(L_i)

Authority = P * (M_leader / M_fly) * TaperIndex

Here we find that A, authority the fly has based on taper, power, and mass of fly and leader. The knot in the wood is the taper index. The taper index describes the leader’s turnover force available. For example, if we use the math from Extending and Repairing the Tippet on a Leader: A Mathematical Approach, we can find a leader with diameters:

L_1 = Butt, 30lb, 0.023
L_2 = Mid, 12lb, 0.012
L_3 = Tip, 5lb, 0.006

The total length of the butt is 50 percent 9 feet, or 4.5 feet, the mid-section is 30 percent of 9 feet, or 2.7 feet, and the tip-section is 20 percent of 9 feet, or 1.8 feet. The we plug it in to the taper index formula.

L_1 = (4.5feet * 12 inches) * 0.023^4 = 0.00001511
L_2 = (2.7 feet * 12 inches) * 0.012^4 = 0.0000006718
L_3 = (1.8 feet * 12 inches) * 0.006^4 = 0.000000028

TaperIndex  = 0.0000158 /108

TaperIndex  = 0.000000146, or 14.6x10^-8

The rod taper alone does not determine the max fly mass by itself. It does so with rod power P, leader mass, and the chosen threshold. Because a leader is not acting alone. A 6wt and an 8wt do not have the same authority over the same leader and fly. Same leader, same fly, different rod, different beast. In the Authority formula we can set the leader mass to double the weight, and the power to half the weight, so a 6wt out of 12wt, then we are left with:

A = TaperIndex

This means that we are setting the midline for the taper index. This is the leader’s turnover capability before we attach a load to it.

Important clarification: a leader with no fly does not necessarily give “perfect turnover” in a universal sense. It gives the least resisted turnover. Perfect turnover depends on casting loop shape, rod loading, wind, taper steps, memory in materials, whether leader kicks or recoils. To phrase it better we would say, a flyless leader gives the leader’s highest available turnover authority, a capacitance, or a baseline turnover capacity value, under that rod and casting setup.

Using the Authority formula with that taper index and a fly that has a mass of 0.015g, it will have an authority of 0.0000002628, or 26.28×10^-8. But if we change the mass of the fly to 0.155, then the Authority drops to 0.00000002543, or 2.54 x10^-8. Because fly mass appears in the denominator of the Authority equation, heavier flies consume more of the leader’s available turnover authority. Lighter flies leave more authority available. When authority falls below the taper index baseline, the system begins to lose control and hinging or collapse may occur. I would not have discovered this had the leader I chose to demonstrate this on paper had double the mass of the fly I used the other day when I started this whole project.

If I use A = TaperIndex, then I am saying that the fly mass is exactly the mass that makes the rod-leader mass factor balance to 1, which is a balance condition, not a real max weight rule. This tells me:

• at this fly mass, taper is the only thing left setting the authority number
• lighter flies than this give A>T: Likely workable
• heavier flies than this give A<T: Collapse/ hinging/ knot gremlins begin

So, this means that if we weigh our leader and multiply it by the rod power function, divide that by two, then we would have this midline fly mass. Therefore, I can go to my leader wallet and find the midline fly mass, then weigh the flies to see if they would hit that midline, or be above it, or below it. For example, if we have:

A = P (M_leader / M_fly) T

We can solve for the fly mass:

M_fly, effective = (P * M_Leader * T) / A

That means that if we define the authority with a minimum threshold, say half the TaperIndex, then we have:

M_fly, effective = (P * M_Leader * T) / A_min

If we set A_min to a minimum value, say half the authority, then we have:

A_min = T / 2

If:

k = 1 : baseline
k = 2 : 50% capacitance remaining
k = 3 : 33% turnover remaining

Once we decide on our cutoff authority, then we can predict the fly mass with least resistance (if k = 1). This does not account for wind, drag, or extra weights. So we would have:

T / k = P (M_leader/M_fly) T

k = P (M_leader/M_fly)

M_fly = (P * M_leader) / k

We can also use this final formula to solve for the weight of a leader based on the weight of a fly, the k factor for authority, and power of rod.

M_leader = (k * M_fly) / P

An example would be:

M_fly = 0.027 (Nymph)
k = 2
P = 5 weight out of 12 weight

M_leader = (2 * 0.027) / (5/12)

M_leader = 0.1296g

In The Perfect Fly Cast: A Physics Model we see that the fundamental definition for mass is:

m ≈ μ ⋅ L

This means that length is baked into mass we can approximate the mass for each section by taking the leader formula 60/30/10 (Nymphing).

Butt = 0.1296 * .6 = 0.07776g
Mid = 0.1296 * .3 = 0.03888g
Tip = 0.1296 * .1 = 0.01296g

The mass for fishing line uses a cylindrical shaped formula:

m = p * ((ϖd^2)/4) * L

Where:

p = density

If we solve for length:

L = 4m / p ϖd^2

Then we divide diameter by 1000:

d = d_t/1000

So, then we have:

L = 4m / p ϖ(d/1000)^2

Simplified:

L = (4m * 10^6) / p ϖd^2

Nylon density:
1.3 – 1.5 with 1.4g/cm^3 as the standard

PVDF (fluorocarbon) density:

1.76-1.79 with 1.78 g/cm^3 as the standard

We multiply by 16.387 to convert to inches cubed.

For nylon: L_feet = (6816 * M_leader) / d^2
For PVDF: L_feet = (43649 * M_leader) / d^2

Then we solve with the masses we calculated above.

 Butt = (6816 * 0.07776g) / 23^2 = 1 foot

If we want a 9 foot leader we find the percentage of length:

9 feet * .6 = 5.4 feet

Plug it in and remove the diameter:

d, thousandths = sqrt((6816 * m) / L)

d = sqrt((6816 * 0.07776g) / 5.4) = sqrt(98.1504) = 9.9 or 0.0099”

For the #18 pheasant tail nymph on a 5wt we would use roughly 8lb at 5.4 feet for the butt material.

This shows you what section you will begin on when designing the leader. Understand that the length of the butt section calculated from the percentage can be scaled because it doesn’t affect the outcome of the final calculations. Here we play with the diameter of butt to equal the stiffness of the of the fly line, and in this case a 5wt.

The fly is a #18. So, if we look at our Max Tippet chart from Mad Angler AI:

HOOK_TO_MAX_TIPPET = {

…

    20: 0.007,

    18: 0.008,

    16: 0.009,

…

}

We see the max tippet for an 18 is 8 thousandths. Say we used 6x as the tippet, that’s .005”. We use the material diameter formulas from Advanced Leader Design:

d_m2​ = sqrt(d_m1⋅ d_t)

d_m2​ = sqrt(0.009 * 0.005)

d_m2 = 0.006

Then finish the leader with a 60/25/15 or 60/30/10.

Butt: 0.009 @ 5.4 feet
Mid: 0.006 @ 2.25 feet
Tip: 0.005 @ 1.35 feet

This leader might work on a windless day. But we might need to beef it up with another section:

d_m​1 = sqrt(d_b​⋅ d_m2)

d_m​1 = sqrt(d_b​⋅ d_m2)

0.009 = sqrt(d_b * 0.006)

d_b  = 0.009^2 / 0.006

d_b = 0.013

But then say we need more diameter in the butt because the stream is a little rough:

r = 3_root(T/B)

r = 0.7728

mid_2 = butt * r^2

0.013 = butt * 0.7728^2

Butt = 0.013 / 0.7728^2

Butt = 0.021

But I only need a 9 foot leader, so I can use the nymph leader profile, 60/30/10, and implement the fully built leader diameter scheme into the length:

Butt:30 = 0.021
Mid1:30 = 0.013
Mid2:15 = 0.009
Mid3:15 = 0.006
Tip:10 = 0.005

Then we convert as usual :

9 feet * 0.3 = 2.7 feet

9 feet * 0.15 = 1.35 feet

9 feet * 0.1 = 0.9 feet

This is an engineered approach to presentation. By solving for M_leader based on a specific nymph weight, you are creating a “tuned” system where the leader acts as a perfect harmonic extension of the fly line.

It takes the guesswork out of why a certain fly “won’t turn over” on a standard 4X leader—you can now prove mathematically that the Authority was too low.

Leader Mass Reference Table (k = 2)

This table tells you the target total mass (grams) your 3-section or 5-section leader should have based on the fly and rod.

Fly Type	Approx. Mfly​ (g)	3wt Rod (P=0.25)	5wt Rod (P=0.42)	8wt Rod (P=0.67)
Small Midge (#20-22)	0.015g	0.120g	0.071g	0.045g
Standard Nymph (#18)	0.027g	0.216g	0.129g*	0.081g
Copper John / Tungsten	0.065g	0.520g	0.310g	0.194g
Streamer / Bass Bug	0.155g	1.240g	0.738g	0.463g

Diameter to Length (Nylon)

Once you know your target M_leader from the table above, use this “Length-per-Inch” cheat sheet to hit your mass goals for each section. These values use your derived Nylon constant (6816) and are calculated for 1-inch segments.

Material Diameter (d)	Mass per 12″ (g)	Notes
0.023 (30lb Butt)	0.093g	Very heavy; dominates total mass quickly.
0.013 (Mid 1)	0.030g	Provides the “stiffness bridge.”
0.009 (Mid 2)	0.014g	Critical for energy transition.
0.007 (4X Tippet)	0.009g	Minimal mass contribution.
0.005 (6X Tippet)	0.004g	Almost zero authority contribution.

How to use this Ref:

1. Pick your Fly & Rod: Find the target $M_{leader}$ (e.g., 0.129g for a nymph on a 5wt).
2. Distribute by Ratio: Apply your 60/30/10 rule.
   • Butt (60%): 0.077g
   • Mid (30%): 0.039g
   • Tip (10%): 0.013g
3. Find the Lengths: * If you use 0.021″ for the butt, 12 inches of it weighs 0.077g.
   • Result: You need exactly a 1-foot butt section of 0.021″ to balance that fly. If you want a longer leader, you must drop the diameter to keep the mass balanced, just as your math suggested.

By shifting our perspective from ‘buying a leader’ to ‘engineering a system,’ we reclaim control over the final moments of the cast. The Authority Formula isn’t just about numbers; it’s about ensuring that when that loop unrolls, the energy you put into the rod reaches the fly without being lost to friction or physics. We no longer have to guess why a leader collapses—we can calculate the solution. A leader is not just a piece of line between the fly line and the fly. It is a mechanical transmission system. By matching fly mass, rod power, and taper stiffness, we can design leaders that carry energy through the cast without loss. Instead of guessing why a leader collapses, we can diagnose the problem mathematically and correct it at the tying bench.

This model assumes:

• calm conditions
• aerodynamic drag ignored
• fly mass approximates casting load
